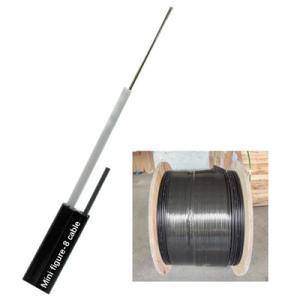

Mini Figure 8 Cable Self-Supporting Fiber Optic Cable 24 Core Figure 8 Steel Armored GYXTC8S
Description
The structure of Mini Figure 8 GYTC8S optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. A layer of plastic-coated aluminum tape (APL) is added to the sheath outside the cable core in the form of longitudinal wrapping, and finally a polyethylene sheath is squeezed together with the steel strand to make the cross section of the "8" shape.
Product Standards
Mini Figure 8 GYXTC8S optical cable complies with YD/T1155-2011 and IEC60794-1 standards.
Features
1. Filling with water-blocking ointment step by step, full-section water-blocking of optical cable unit
2. Stable fiber excess length control
3. After the cable is formed, the additional attenuation of the optical fiber is less than 0.02dB/Km, and the dispersion value does not change
4. Excellent environmental performance, applicable temperature range can reach -40℃~+70℃
Technical data
| Cable Type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static/Dynamic | ||||
| N | N/100mm | mm | ||||
| GYXTC8S | 2-12 | 9.8*18.5 | 166 | 2000/6000 | 300/1000 | 10D/20D |
| GYXTC8S | 14-24 | 10.6*19.3 | 180 | 2000/6000 | 300/1000 | 10D/20D |
